KF-AP-B Portable Pulsed Laser Welding Machine
Review the portable pulsed platform against the joint, material and process result you need.

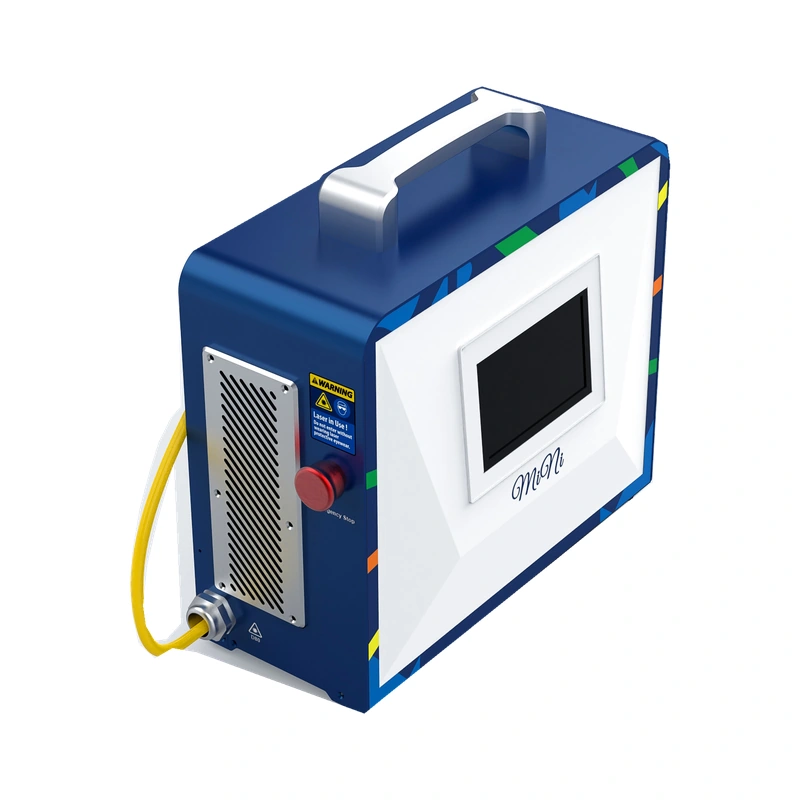

Supplied product render. Product view 1. Equipment shown may include options; confirm the selected version and equipment list in your quotation. The gallery contains supplied same-version renders from internal source material. An unconfirmed external rear-view candidate is excluded.
Supplied product render. Product view 2. Equipment shown may include options; confirm the selected version and equipment list in your quotation.

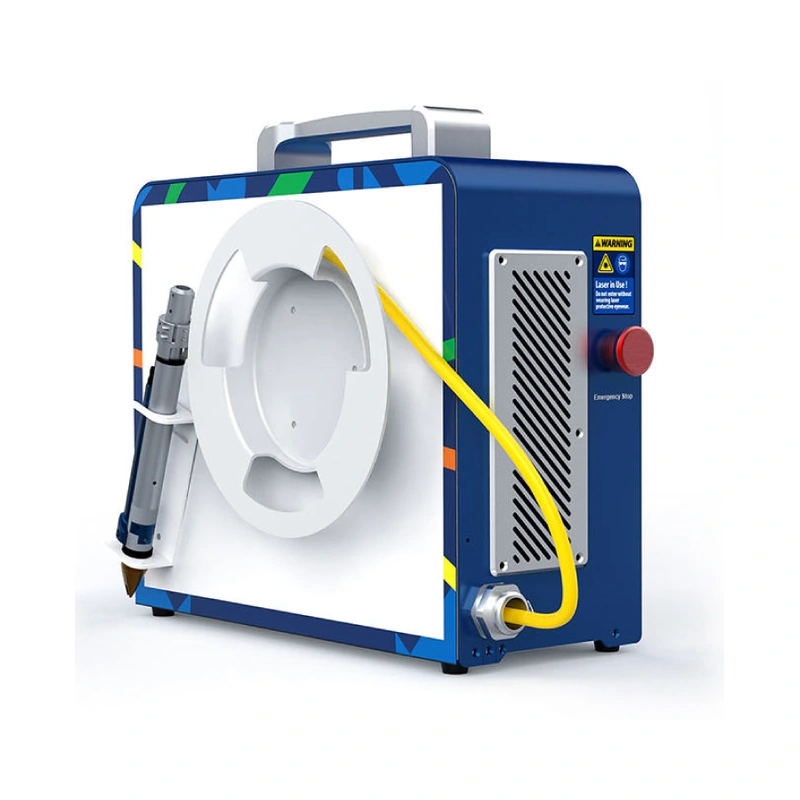

Supplied product render. White-reel side oblique view. Same supplied reference version; equipment and accessories follow the confirmed quotation.
Exterior reference model based on the product images. Proportions are approximate; unconfirmed hidden details are simplified. Final equipment follows the agreed configuration.
View product imagesPlan portable welding around the pulse process.
Review the portable pulsed platform against the joint, material and process result you need.
Review the machine and the workflow.
Portable cabinet
The supplied renders show the blue-white portable KF-AP-B version. Carrying and placement requirements should be reviewed with the complete equipment set.
Pulse process review
Evaluate the joint and material with the pulse settings, head and operating method for the selected source.
Power definitions
Average power, peak power, pulse energy and pulse duration are different quantities. Confirm the source specification before comparing options.
Plan your KF-AP-B configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Joint | Material, thickness, joint type and gap | Source, welding head and nozzle |
| Wire and gas | Filler material, wire diameter and shielding gas | Feeder, consumables and gas supply |
| Workstation | Duty cycle, access and installation country | Cooling, electrical supply and protected work area |
Technical data & source options
| Model / series | KF-AP-B |
|---|---|
| Equipment format | Portable pulsed laser welding |
| Configuration basis | Selected version and itemised quotation |
| Laser technology | Quasi-continuous-wave fiber laser |
| Average laser power | 300 W |
| Peak laser power options | 600 W or 1000 W; both configurations have 300 W average output |
| Maximum single-pulse energy | 6 J with the 600 W peak configuration; 10 J with the 1000 W peak configuration |
| Laser wavelength | 1080 ±5 nm |
| Pulse frequency | 1–300 Hz |
| Delivery fiber length | 3 m |
| Cooling method | Air cooling |
| Operator display | 5-inch laser-controller display |
| Control method | Inching and foot-pedal control |
| Supply voltage | AC 220 V, 50 Hz |
| Machine dimensions | 374.5 × 191 × 330 mm |
| Machine weight | 13 kg with 600 W peak output; 14.5 kg with 1000 W peak output |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
The gallery contains supplied same-version renders from internal source material. An unconfirmed external rear-view candidate is excluded.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
Is peak power the same as rated average power?
No. Compare average power, peak power, pulse energy and pulse duration using the selected source data and representative joint trials.
What should I send for a KF-AP-B quotation?
Material, thickness, joint type and gap. Also include your production requirements, destination and installation conditions.
Are all accessories shown included?
Images identify the supplied reference version. Confirm the machine, process head, supporting equipment and accessories in the itemised quotation.
Can I confirm the result with a sample?
Share a representative part or material and define measurable acceptance criteria. Review the proposed configuration and test plan before arranging the sample.
