3 kW Fiber Laser Cutting MachineSheet Metal Cutting Project Planning
From the part drawing to the machine layout: define the material, handling, sample checks and startup scope before choosing a configuration.
Laser Processing and Automation Solutions
PROJECT PLANNING
Tube Cutting Project Planning
Explore tube features, clamping, material flow and equipment formats. Connect stock handling to the finished part, then define your tube-cutting setup.

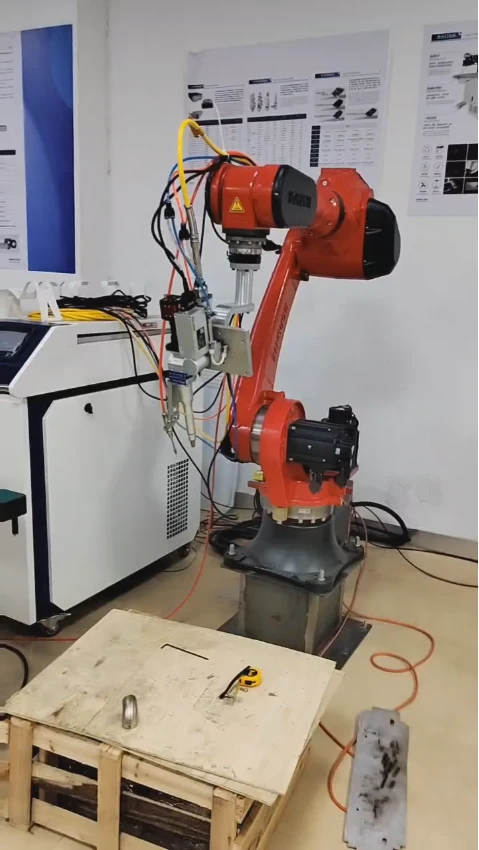

Robotic welding around the joint.
Define weld access, robot movement and part handling as one workflow. Review the reach, fixtures and welding sequence around a representative assembly.
Define the requirements
- Joint drawings, material and thickness
- Part loading, clamping and weld access
- Required cycle and weld acceptance points

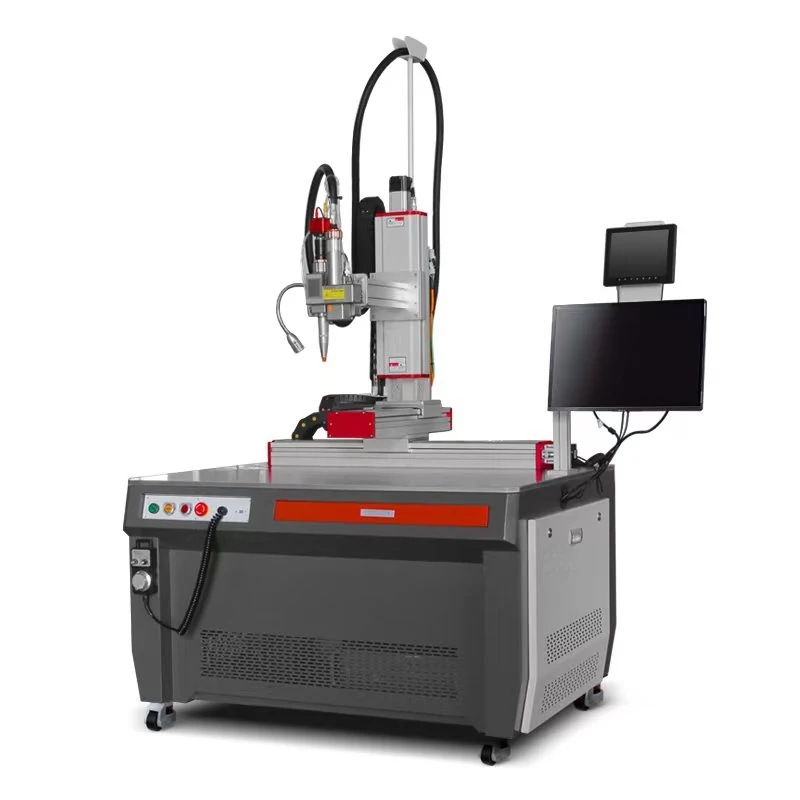

Platform welding for repeat parts.
A platform setup brings workholding and controlled motion together. Use the part and joint layout to review the working area, fixture concept and sequence.
Define the requirements
- Largest workpiece and joint layout
- Datum points, clamping and changeovers
- Batch size and loading requirements
Tube and shaped-part cutting.
For tube, profile and shaped workpieces, review the cut path together with stock handling and access angles. Discuss the appropriate machine format before defining the motion and tooling.
Define the requirements
- Sections, dimensions and part drawings
- Straight cuts, holes and angled features
- Stock length, support and unloading needs
01
The part
Drawings or a model, material, dimensions and the features to process.
02
The workflow
Loading, fixtures, changeovers, target output and surrounding equipment.
03
The site
Available space, installation location, utilities and support needs.
