FLC-S1 Open-Bed Fiber Laser Cutting MachineFive-axis profile and bevel cutting
FLC-5X 3D Five-Axis Fiber Laser Cutting Machine
Review planar, bevel and structural-profile cutting against your part drawings and handling needs.

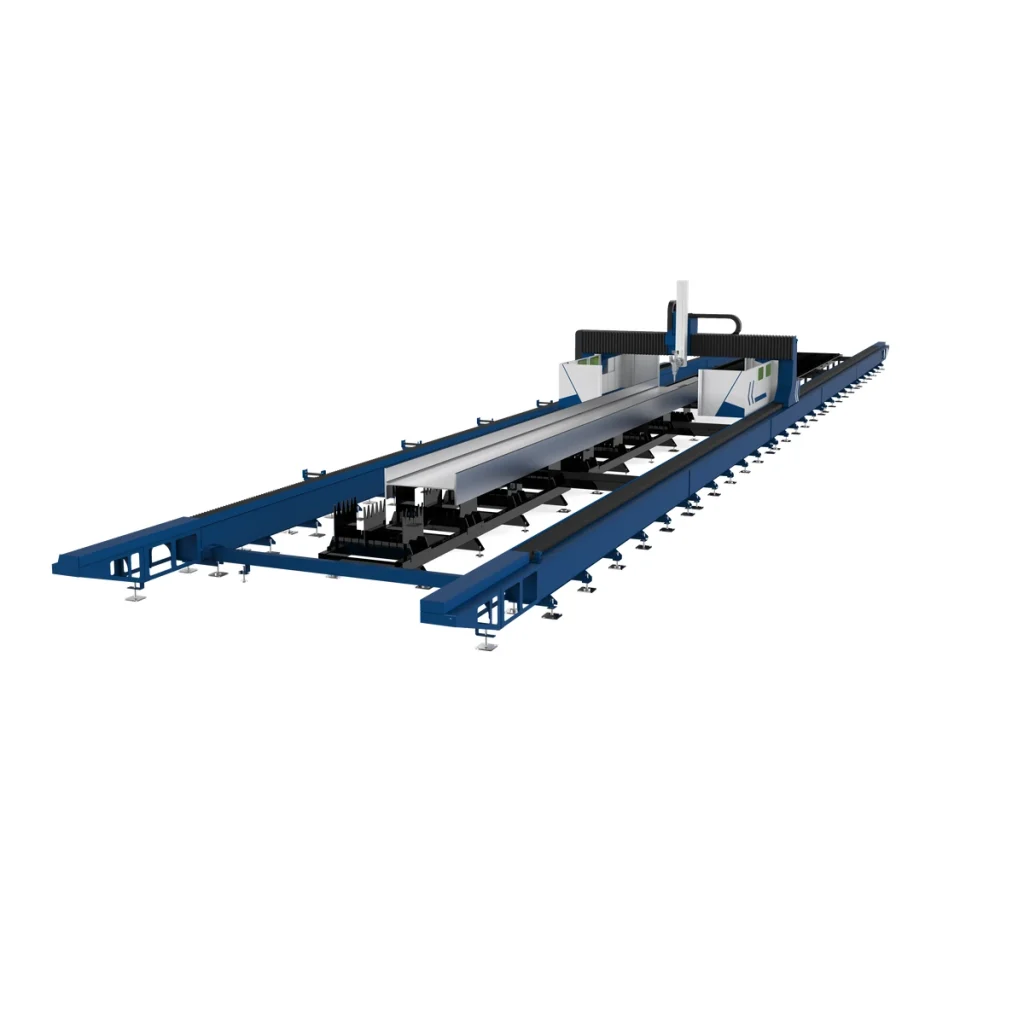

Supplied product render. Product view. Equipment shown may include options; confirm the selected version and equipment list in your quotation.

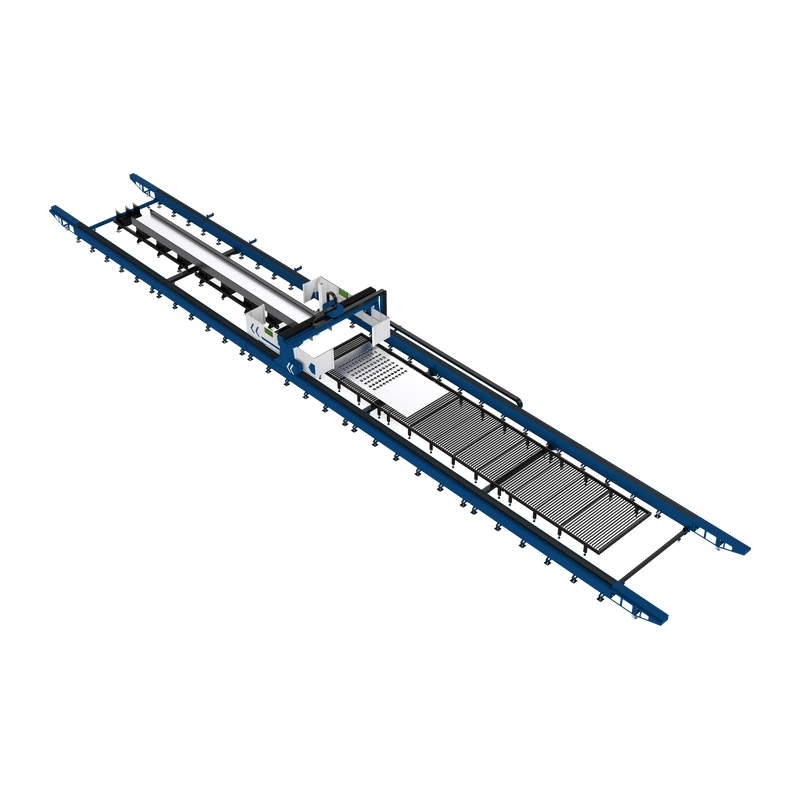

Supplied product render. Profile-feed end view. Same supplied reference version; equipment and accessories follow the confirmed quotation.

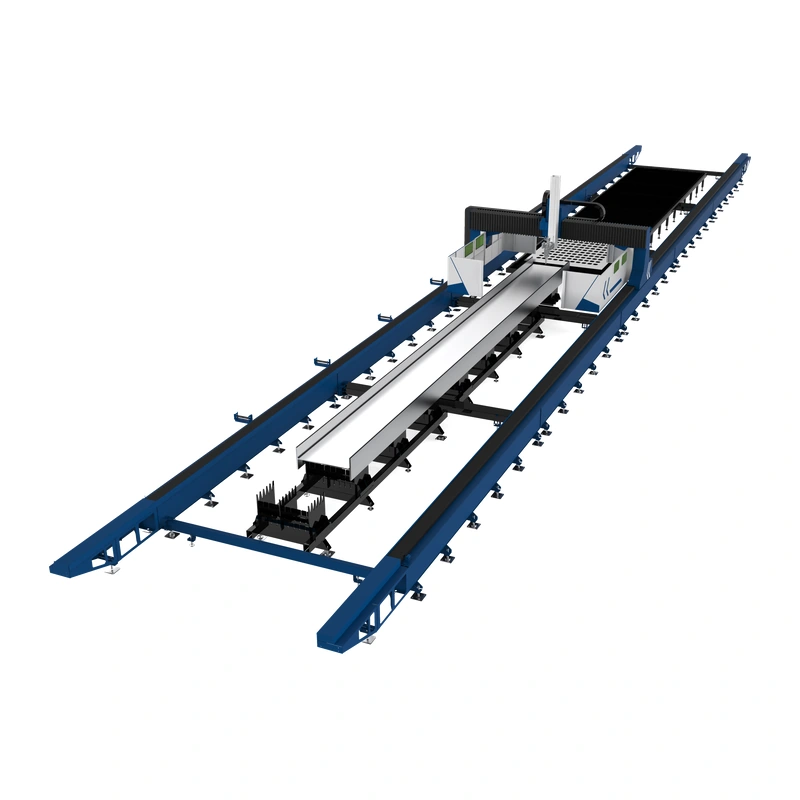

Supplied product render. Opposite elevated view. Same supplied reference version; equipment and accessories follow the confirmed quotation.
View product imagesPlan the cut around three-dimensional geometry.
Review planar, bevel and structural-profile cutting against your part drawings and handling needs.
Review the machine and the workflow.
Geometry review
Supply CAD files or joint drawings to confirm which faces, profiles and bevel features the proposed configuration can access.
Part positioning
Review section size, weight, support and clamping with the workpiece handling method.
Process acceptance
Define bevel angle, edge requirements and inspection criteria using representative parts.
Plan your FLC-5X configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Geometry | 3D model, profile section and bevel details | Axis arrangement and cutting access |
| Workpiece | Part size, length, weight and support points | Clamping and handling layout |
| Acceptance | Joint fit-up and edge requirements | Process trial and inspection plan |
Technical data & source options
| Model / series | FLC-5X |
|---|---|
| Equipment format | Five-axis profile and bevel cutting |
| Configuration basis | Selected version and itemised quotation |
| Specification scope | Five-axis structural-profile version shown |
| Machining envelope (documented layout) | 28,000 × 3,500 × 1,000 mm |
| Z-axis travel | 1,000 mm |
| Flat-sheet cutting area (documented layout) | 13,000 × 3,000 mm |
| H-beam web range (documented version) | 125–1,500 mm |
| Positioning accuracy | ±0.05 mm/m |
| Repeat positioning accuracy | ±0.03 mm |
| Laser wavelength | 1,070 nm |
| Electrical supply | 380 V, 50 Hz |
| Cooling method | Water cooling |
| Operating temperature | 0–40 °C |
| Operating humidity | 5–90% |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
Confirm the selected machine version, source, head, controls and supporting equipment in an itemised quotation.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
What should I send for a FLC-5X quotation?
3D model, profile section and bevel details. Also include your production requirements, destination and installation conditions.
Are all accessories shown included?
Images identify the supplied reference version. Confirm the machine, process head, supporting equipment and accessories in the itemised quotation.
Can I confirm the result with a sample?
Share a representative part or material and define measurable acceptance criteria. Review the proposed configuration and test plan before arranging the sample.
Discuss your FLC-5X project.
Review planar, bevel and structural-profile cutting against your part drawings and handling needs. Send your requirements so we can review the configuration and equipment scope.
- Materials and part details
- Processes and quality requirements
- Installation and supporting equipment
