FLC-T1 Single-Chuck Laser Tube Cutting Machine
Review a single-chuck tube-cutting arrangement against the section you process, the length of the finished part and the way stock is supported.

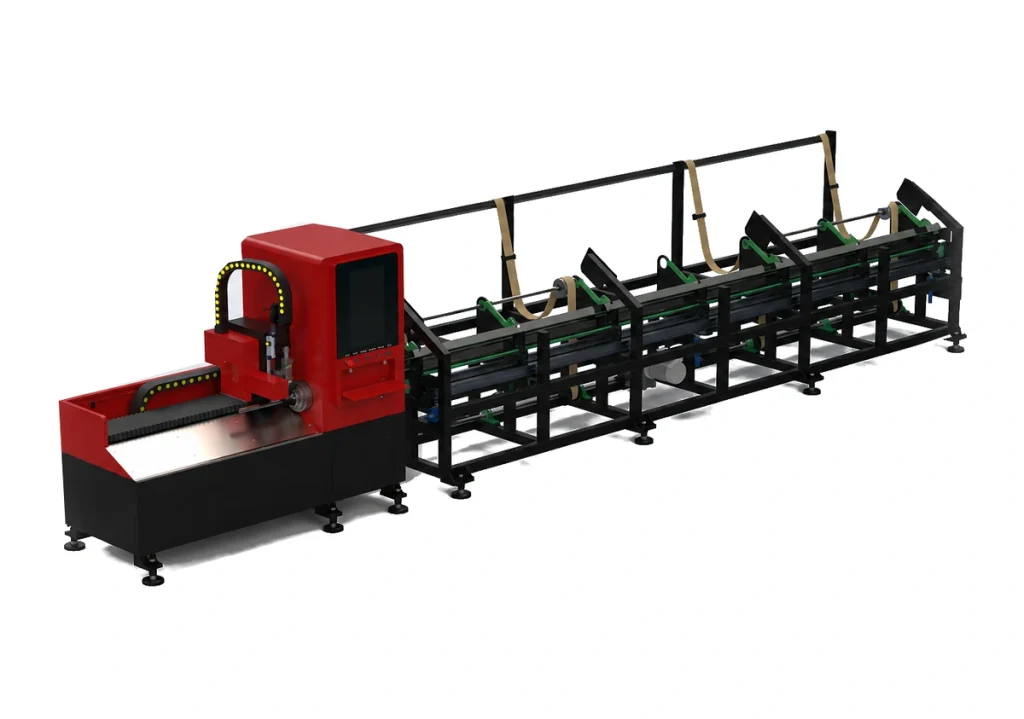

Supplied product render. Product view. Equipment shown may include options; confirm the selected version and equipment list in your quotation. Manufacturer product render of the selected single-chuck layout; supplied equipment and accessories follow the agreed quotation.
View product imagesDefine the single-chuck cutting task.
Review a genuine single-chuck layout for your tube sections and stock-handling requirements.
Review the machine and the workflow.
Size around the actual tube
Define the tube section, outside dimensions, wall thickness, stock length and weight. Chuck fit and the support arrangement must be checked together.
Account for the finished part and remnant
Include finished-part length, unloading and acceptable remnant in the review. The number of chucks alone does not establish part length, material use or cycle time.
Plan your FLC-T1 configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Stock | Section drawing, diameter, wall and material | Chuck jaws and cutting process |
| Handling | Tube length, weight and bundle size | Supports, loading and finished-part collection |
| Acceptance | Part drawings, joint requirements and tolerances | Sample test and agreed inspection plan |
Technical data & source options
| Model / series | FLC-T1 |
|---|---|
| Equipment format | Single-chuck tube cutting |
| Configuration basis | Selected version and itemised quotation |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
Manufacturer product render of the selected single-chuck layout; supplied equipment and accessories follow the agreed quotation.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
Can FLC-T1 process every tube shape?
Do not assume this from the machine format. Supply a section drawing, outside dimensions, material and wall thickness so the selected chuck, support and cutting arrangement can be checked.
Which lengths should I specify?
State the incoming stock length, finished-part length and acceptable remnant separately. Also provide stock weight and how parts will be supported or collected after cutting.
How should I compare single-chuck and multi-chuck machines?
Compare the actual support, feeding, part-removal and remnant requirements for your job. FLC-T1 identifies the single-chuck format; do not transfer capacities from another chuck arrangement or assume that chuck count alone determines suitability.
Discuss your FLC-T1 project.
Review a genuine single-chuck layout for your tube sections and stock-handling requirements. Send your requirements so we can review the configuration and equipment scope.
- Materials and part details
- Processes and quality requirements
- Installation and supporting equipment
