FLC-TA Automatic-Loading Fiber Laser Tube Cutting Machine
Plan tube loading, cutting and collection around your stock and production batches.

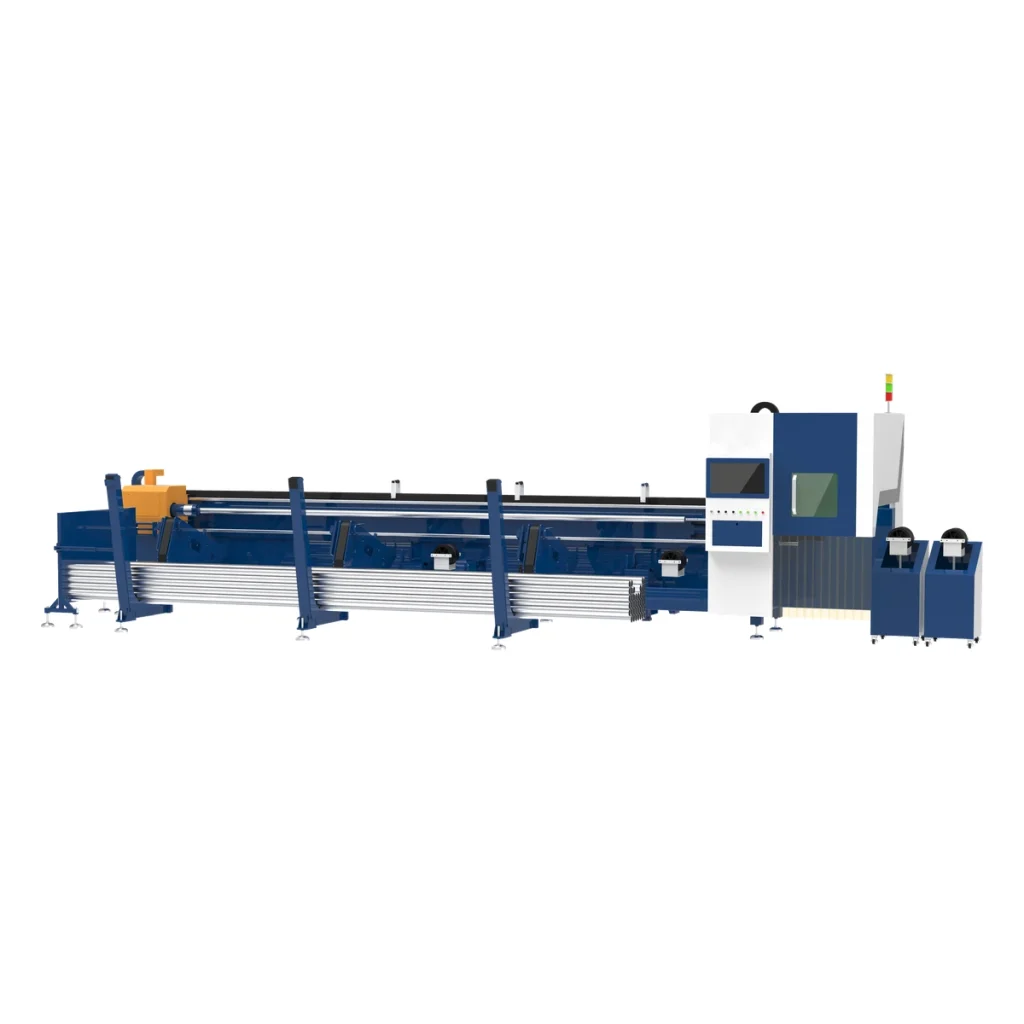

Supplied product render. Product view. Equipment shown may include options; confirm the selected version and equipment list in your quotation.

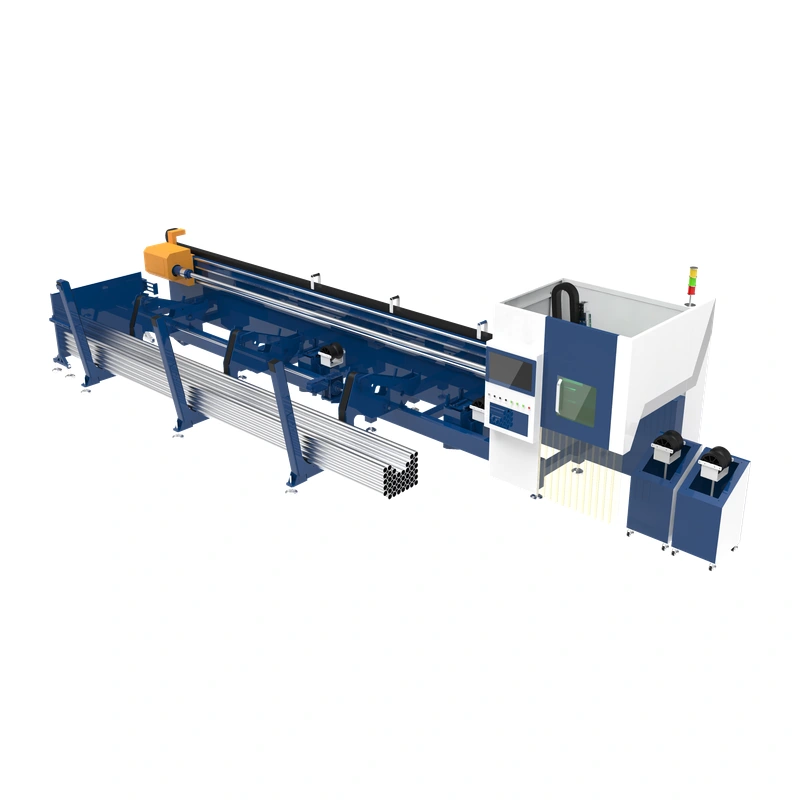

Supplied product render. Loading-side oblique view. Same supplied reference version; equipment and accessories follow the confirmed quotation.

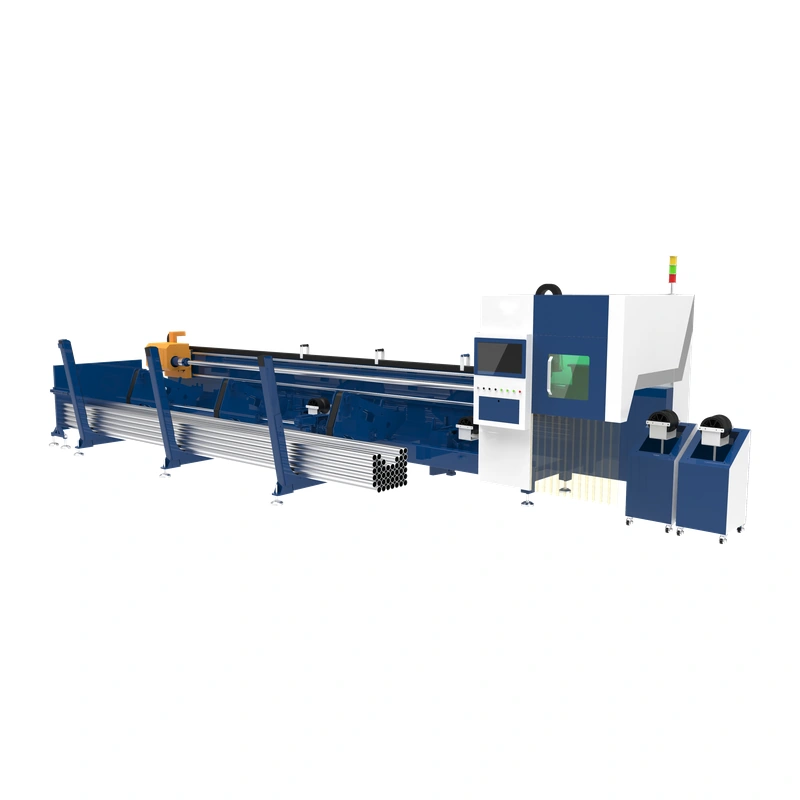

Supplied product render. Cutting-end oblique view. Same supplied reference version; equipment and accessories follow the confirmed quotation.
View product imagesConnect stock handling to the cutting cycle.
Plan tube loading, cutting and collection around your stock and production batches.
Review the machine and the workflow.
Loading arrangement
Provide bundle size, tube section, length and weight to review the automatic-loading equipment.
Support through the cycle
Confirm how the stock is supported, indexed and transferred through the cutting sequence.
Finished-part handling
Define part length, sorting, unloading and remnant handling along with the cutting requirements.
Plan your FLC-TA configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Stock | Section drawing, diameter, wall and material | Chuck jaws and cutting process |
| Handling | Tube length, weight and bundle size | Supports, loading and finished-part collection |
| Acceptance | Part drawings, joint requirements and tolerances | Sample test and agreed inspection plan |
Technical data & source options
| Model / series | FLC-TA |
|---|---|
| Equipment format | Automatic-loading tube cutting |
| Configuration basis | Selected version and itemised quotation |
| Specification scope | Six-axis version with loading rack shown |
| Controlled axes | 6 |
| Tube cutting length | Up to 6,200 mm |
| Z-axis travel (documented version) | 150 mm |
| Positioning accuracy | 0.03 mm/m |
| Repeat positioning accuracy | 0.02 mm |
| Laser wavelength | 1,070 nm |
| Electrical supply | 380 V, 50 Hz |
| Cooling method | Water cooling |
| Operating temperature | 0–40 °C |
| Operating humidity | 5–90% |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
Confirm the selected machine version, source, head, controls and supporting equipment in an itemised quotation.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
What should I send for a FLC-TA quotation?
Section drawing, diameter, wall and material. Also include your production requirements, destination and installation conditions.
Are all accessories shown included?
Images identify the supplied reference version. Confirm the machine, process head, supporting equipment and accessories in the itemised quotation.
Can I confirm the result with a sample?
Share a representative part or material and define measurable acceptance criteria. Review the proposed configuration and test plan before arranging the sample.
Discuss your FLC-TA project.
Plan tube loading, cutting and collection around your stock and production batches. Send your requirements so we can review the configuration and equipment scope.
- Materials and part details
- Processes and quality requirements
- Installation and supporting equipment
