FLC-C Coil-Fed Fiber Laser Cutting Line
Review decoiling, levelling, feeding, cutting and collection as one coordinated production line.

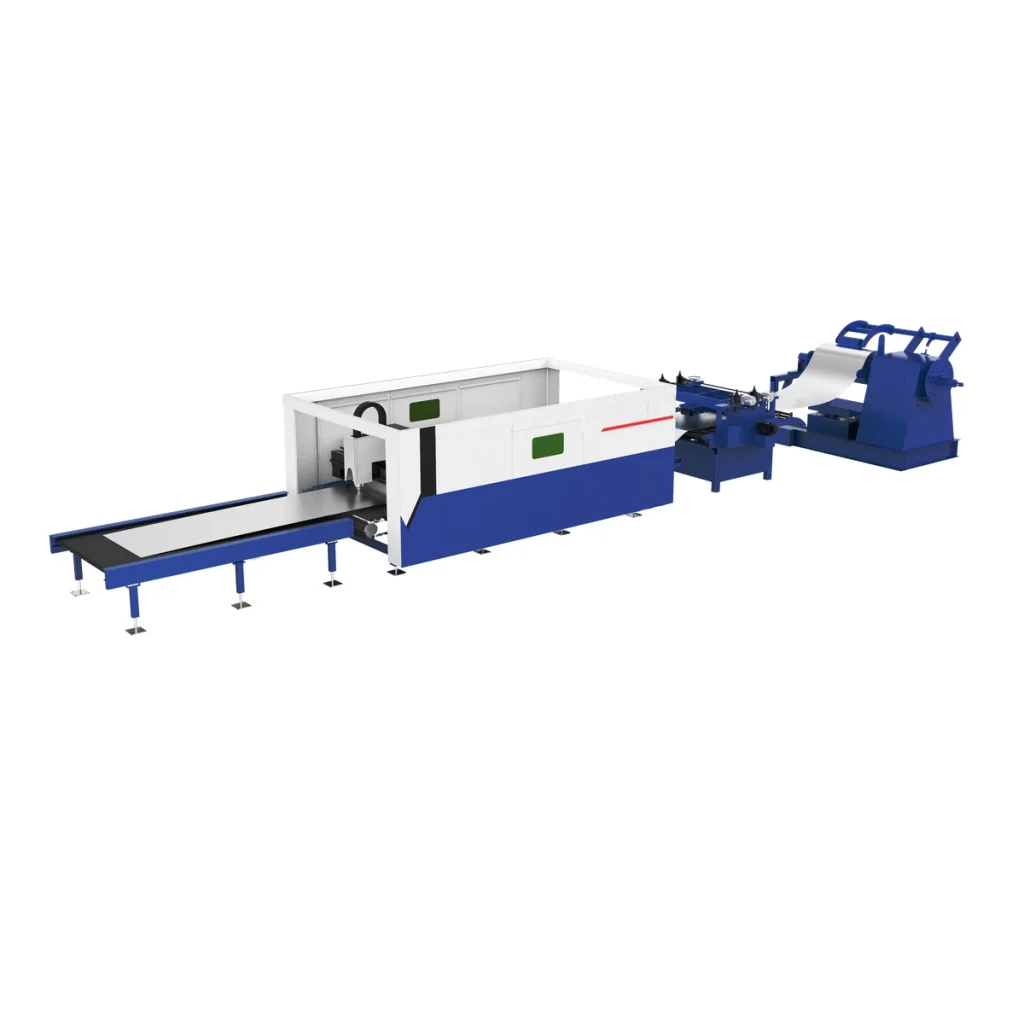

Supplied product render. Product view. Equipment shown may include options; confirm the selected version and equipment list in your quotation.

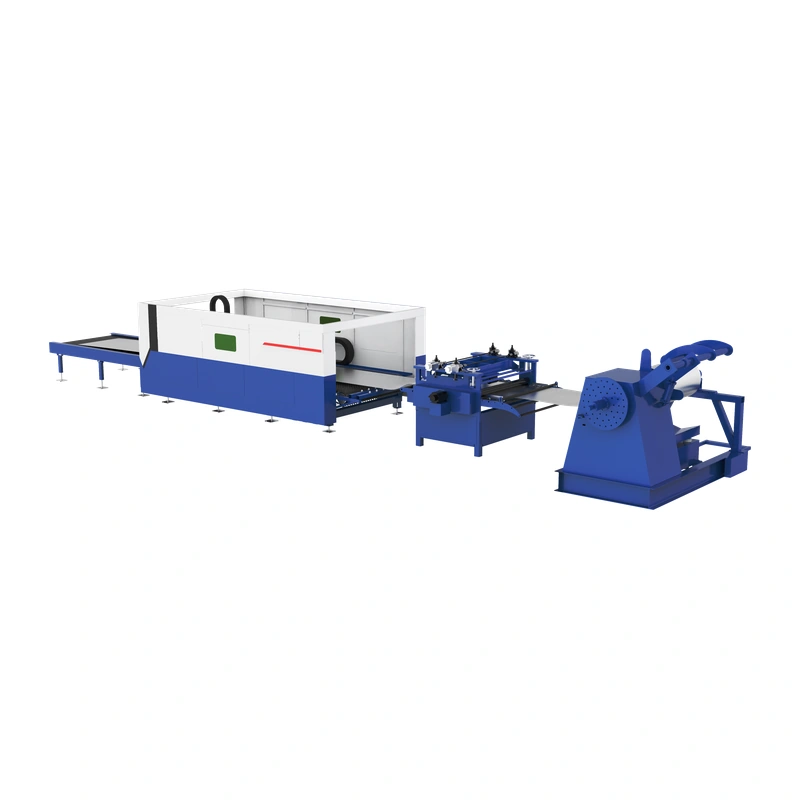

Supplied product render. Feed-end oblique view. Same supplied reference version; equipment and accessories follow the confirmed quotation.

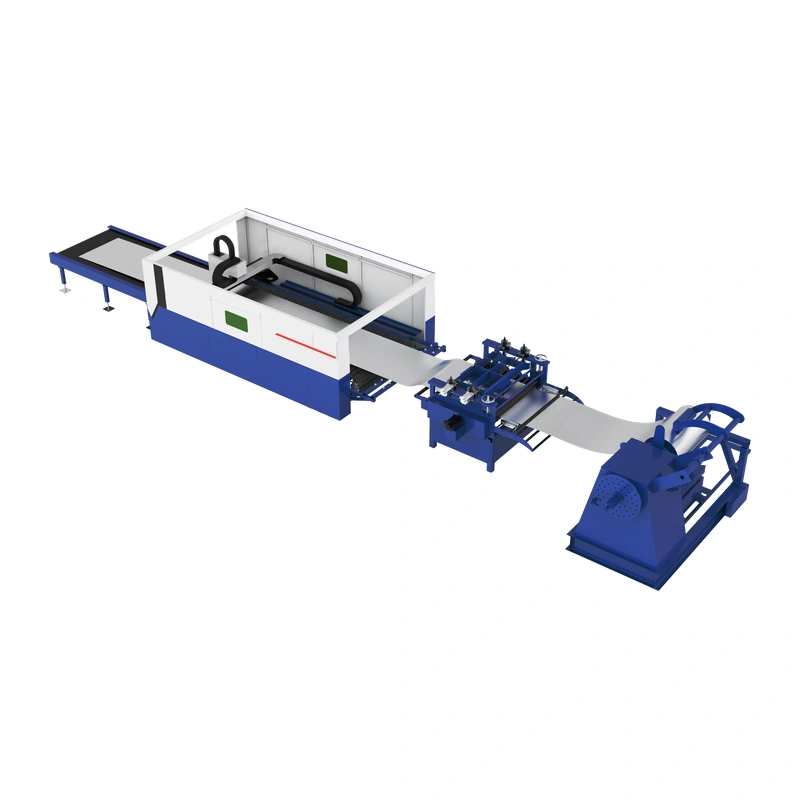

Supplied product render. Elevated output-end view. Same supplied reference version; equipment and accessories follow the confirmed quotation.
Exterior reference model based on the product images. Proportions are approximate; unconfirmed hidden details are simplified. Final equipment follows the agreed configuration.
View product imagesFrom coil stock to collected parts.
Review decoiling, levelling, feeding, cutting and collection as one coordinated production line.
Review the machine and the workflow.
Coil preparation
Define coil material, width, thickness, weight and internal diameter before reviewing the decoiler and levelling section.
Feed and cut sequence
Review feed control, material flatness, nesting and cutting requirements using representative production drawings.
Part collection
Specify how blanks, finished parts and scrap should leave the line, along with space and downstream handling needs.
Plan your FLC-C configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Coil stock | Grade, coil width, thickness, weight and ID | Decoiler and leveller |
| Parts | Drawings, nesting, tolerances and batch mix | Feeding and cutting arrangement |
| Output | Part sorting, scrap and downstream workflow | Collection and line layout |
Technical data & source options
| Model / series | FLC-C |
|---|---|
| Equipment format | Coil feeding and laser cutting |
| Configuration basis | Selected version and itemised quotation |
| Specification scope | 3015 coil-fed line shown |
| Working area (documented layout) | 3,000 × 1,500 mm |
| Z-axis travel | 150 mm |
| Sheet thickness (documented range) | 0.5–3 mm, subject to material and laser configuration |
| Levelling thickness (documented range) | 0.3–3 mm |
| Line stages | Decoiling, levelling, laser cutting and discharge conveying |
| Laser wavelength | 1,070 nm |
| Electrical supply | 380 V, 50 Hz |
| Cooling method | Water cooling |
| Operating temperature | 0–40 °C |
| Operating humidity | 5–90% |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
Confirm the selected machine version, source, head, controls and supporting equipment in an itemised quotation.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
What should I send for a FLC-C quotation?
Grade, coil width, thickness, weight and ID. Also include your production requirements, destination and installation conditions.
Are all accessories shown included?
Images identify the supplied reference version. Confirm the machine, process head, supporting equipment and accessories in the itemised quotation.
Can I confirm the result with a sample?
Share a representative part or material and define measurable acceptance criteria. Review the proposed configuration and test plan before arranging the sample.
Discuss your FLC-C project.
Review decoiling, levelling, feeding, cutting and collection as one coordinated production line. Send your requirements so we can review the configuration and equipment scope.
- Materials and part details
- Processes and quality requirements
- Installation and supporting equipment
