KF-AC-C Air-Cooled Laser Welding and Cleaning Machine
Review the red-and-black four-in-one platform and the tools required for each intended process.

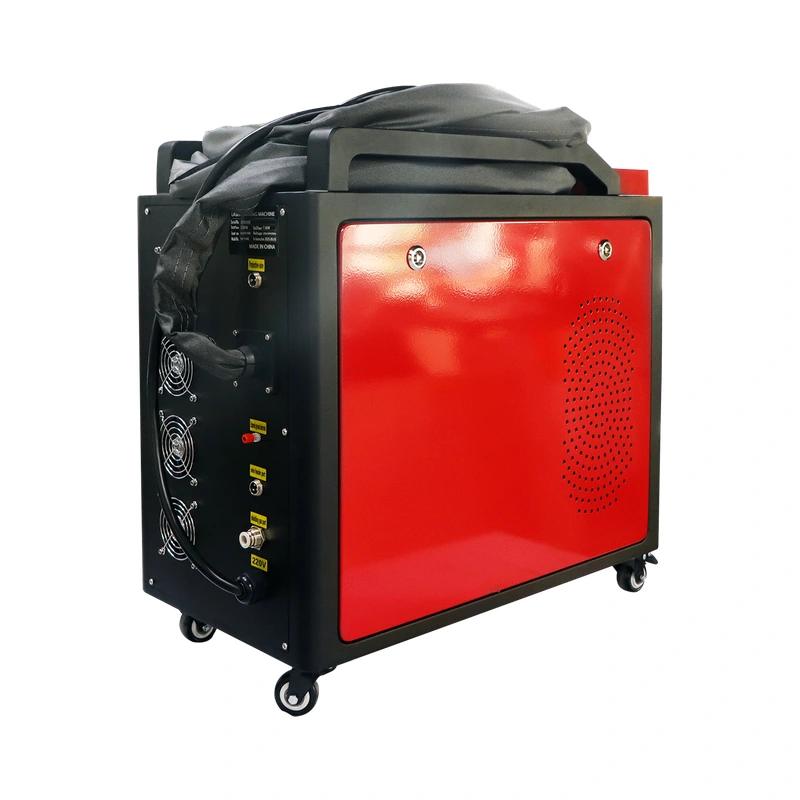

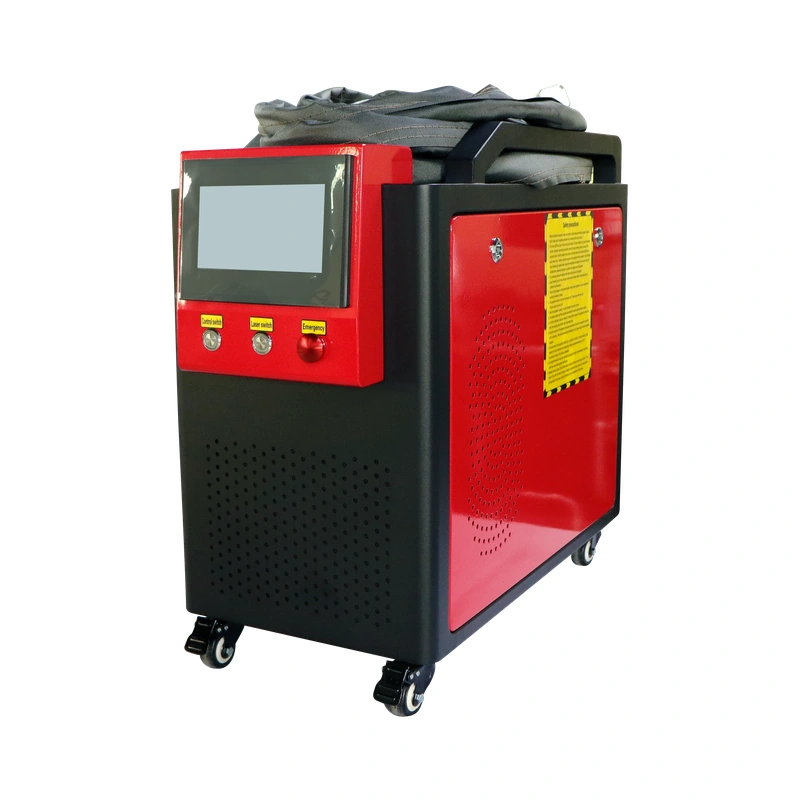

Product photograph. Product view 1. Equipment shown may include options; confirm the selected version and equipment list in your quotation. Four-in-one describes the supplied product family. Exact functions and accessories are specified in the quotation; one setup should not be assumed suitable for every process.
Product photograph. Product view 2. Equipment shown may include options; confirm the selected version and equipment list in your quotation.
Product photograph. Product view 3. Equipment shown may include options; confirm the selected version and equipment list in your quotation.
Exterior reference model based on the product images. Proportions are approximate; unconfirmed hidden details are simplified. Final equipment follows the agreed configuration.
View product imagesMatch each operation to its own setup.
Review the red-and-black four-in-one platform and the tools required for each intended process.
Review the machine and the workflow.
Red-and-black platform
The photographs show the KF-AC-C cabinet and its external equipment. Confirm the complete equipment list for the chosen package.
Welding and cleaning setup
Identify each intended operation so the head, nozzle, gas, feeder and scan setup can be reviewed separately.
Workstation planning
Define material, duty cycle, reach and operating area before selecting the electrical and extraction arrangements.
Plan your KF-AC-C configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Joint | Material, thickness, joint type and gap | Source, welding head and nozzle |
| Wire and gas | Filler material, wire diameter and shielding gas | Feeder, consumables and gas supply |
| Workstation | Duty cycle, access and installation country | Cooling, electrical supply and protected work area |
Technical data & source options
| Model / series | KF-AC-C |
|---|---|
| Equipment format | Air-cooled multi-function welding |
| Configuration basis | Selected version and itemised quotation |
| Specification scope | Red-and-black air-cooled manual configuration |
| Laser power options | 1000 W, 1500 W or 2000 W |
| Operating modes | Continuous or modulated |
| Cooling method | Air cooling |
| Power adjustment | 10–100% |
| Delivery fiber length | 10 m; custom lengths available |
| Fiber core diameter | 50 µm |
| Shielding gas | Nitrogen or argon |
| Welding speed range | 0–120 mm/s; process-dependent |
| Machine dimensions | 700 × 430 × 620 mm |
| Machine weight options | 30 kg, 42 kg or 57 kg, depending on configuration |
| Wire-feeder options | Single or dual wire feeder; optional |
| Supported wire diameters with selected feeder | 0.8, 1.0, 1.2, 1.6 or 2.0 mm |
| Operating environment | 15–35 °C; relative humidity below 70%, non-condensing |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
Four-in-one describes the supplied product family. Exact functions and accessories are specified in the quotation; one setup should not be assumed suitable for every process.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
What should I send for a KF-AC-C quotation?
Material, thickness, joint type and gap. Also include your production requirements, destination and installation conditions.
Are all accessories shown included?
Images identify the supplied reference version. Confirm the machine, process head, supporting equipment and accessories in the itemised quotation.
Can I confirm the result with a sample?
Share a representative part or material and define measurable acceptance criteria. Review the proposed configuration and test plan before arranging the sample.
Discuss your KF-AC-C project.
Review the red-and-black four-in-one platform and the tools required for each intended process. Send your requirements so we can review the configuration and equipment scope.
- Materials and part details
- Processes and quality requirements
- Installation and supporting equipment
