KFC-AP-C Portable Pulsed Laser Cleaning Machine
Review the portable pulsed unit using your surface sample and handling requirements.

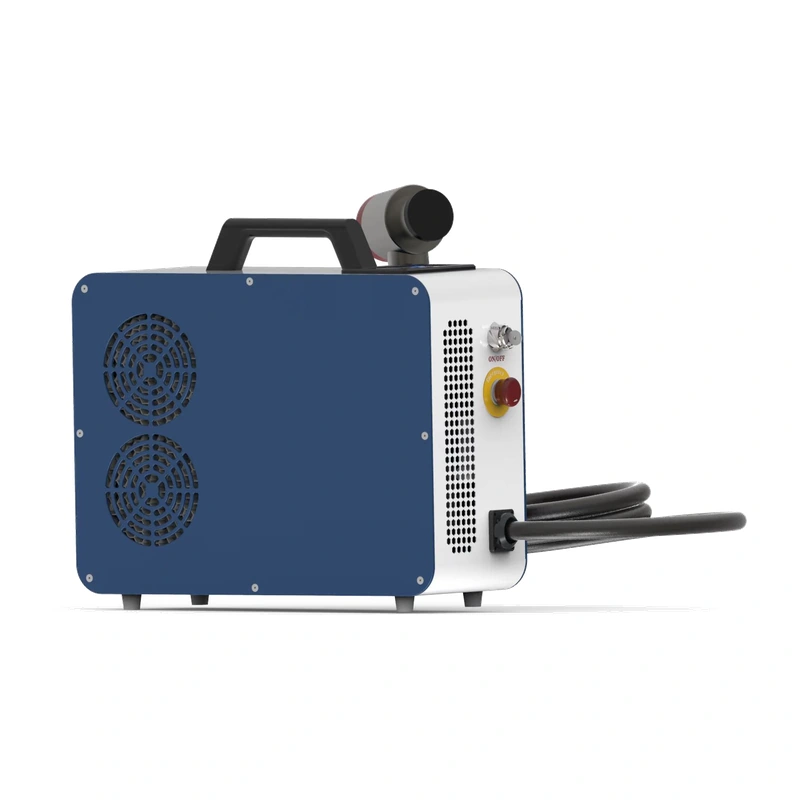

Supplied product render. Product view 1. Equipment shown may include options; confirm the selected version and equipment list in your quotation.

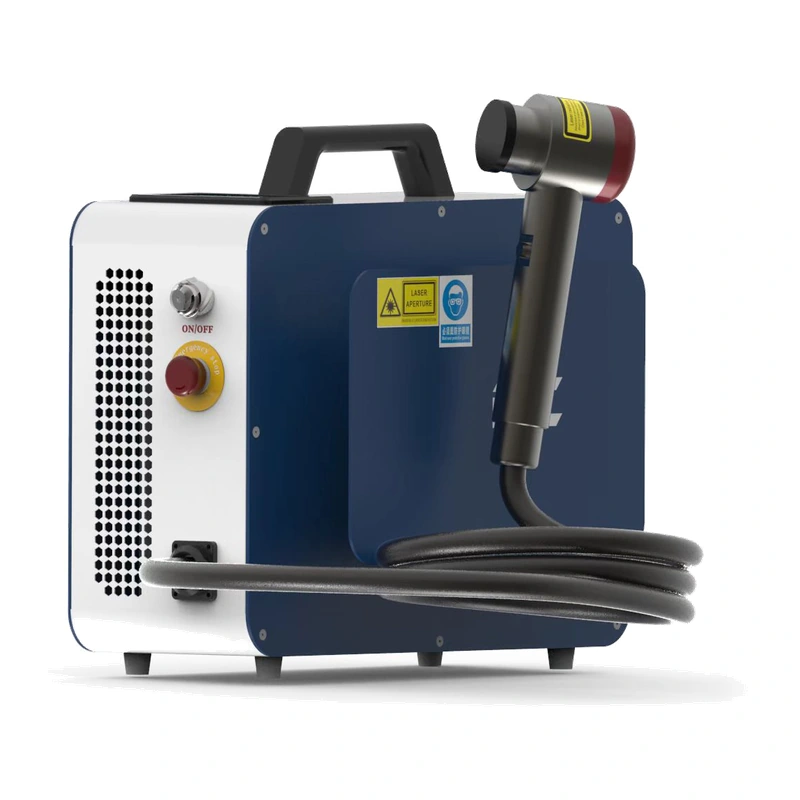

Supplied product render. Product view 2. Equipment shown may include options; confirm the selected version and equipment list in your quotation.
Supplied product render. Product view 3. Equipment shown may include options; confirm the selected version and equipment list in your quotation.
Exterior reference model based on the product images. Proportions are approximate; unconfirmed hidden details are simplified. Final equipment follows the agreed configuration.
View product imagesA portable format with application-specific settings.
Review the portable pulsed unit using your surface sample and handling requirements.
Review the machine and the workflow.
Portable blue-white version
The supplied renders show the handheld-portable KFC-AP-C enclosure and cleaning head. Confirm weight and reach for the selected configuration.
Pulse settings
Match pulse energy, frequency, scan pattern and travel method to the contamination and substrate.
Proof on your surface
Agree an acceptable finish and a sample trial before treating cleaning speed or substrate effect as established.
Plan your KFC-AP-C configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Surface | Substrate, coating or contamination and photographs | Laser source, head and scan settings |
| Acceptance | Required finish and allowable surface change | Sample test and inspection criteria |
| Site | Reach, work area, extraction and electrical supply | Fiber routing, cooling and operating setup |
Technical data & source options
| Model / series | KFC-AP-C |
|---|---|
| Equipment format | Portable pulsed cleaning |
| Configuration basis | Selected version and itemised quotation |
| Specification scope | Portable blue-white brochure configuration |
| Average laser power options | 100 W, 200 W or 300 W |
| Laser type | Pulsed fiber laser |
| Cooling method | Air cooling |
| Supply voltage, brochure configuration | Single-phase AC 100–240 V ±10%, 50/60 Hz |
| Machine power consumption | Below 600 W at 100 W; below 1000 W at 200 W; below 1500 W at 300 W |
| Delivery fiber length | 3 m at 100 W; 5 m at 200/300 W |
| Adjustable scan range | 0–100 mm at 100 W; 0–145 mm at 200/300 W |
| Scanning system | Dual-axis scanning with 9 patterns |
| Machine dimensions, 100 W version | 328 × 213 × 347 mm |
| Machine dimensions, 200/300 W versions | 429 × 218 × 388 mm |
| Machine weight | 12 kg at 100 W; 21 kg at 200/300 W |
| Cleaning head weight | Below 0.9 kg |
| Operating environment | 5–40 °C; relative humidity ≤80% |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
Confirm the selected machine version, source, head, controls and supporting equipment in an itemised quotation.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
Does pulsed cleaning guarantee no substrate damage?
No process claim applies to every surface. Confirm the substrate, coating, pulse settings and acceptance criteria with a representative sample test.
What should I send for a KFC-AP-C quotation?
Substrate, coating or contamination and photographs. Also include your production requirements, destination and installation conditions.
Are all accessories shown included?
Images identify the supplied reference version. Confirm the machine, process head, supporting equipment and accessories in the itemised quotation.
Can I confirm the result with a sample?
Share a representative part or material and define measurable acceptance criteria. Review the proposed configuration and test plan before arranging the sample.
Discuss your KFC-AP-C project.
Review the portable pulsed unit using your surface sample and handling requirements. Send your requirements so we can review the configuration and equipment scope.
