KFC-AP-D Cabinet Pulsed Laser Cleaning Machine
Review the yellow cabinet cleaning unit against the surface, work cycle and site requirements.

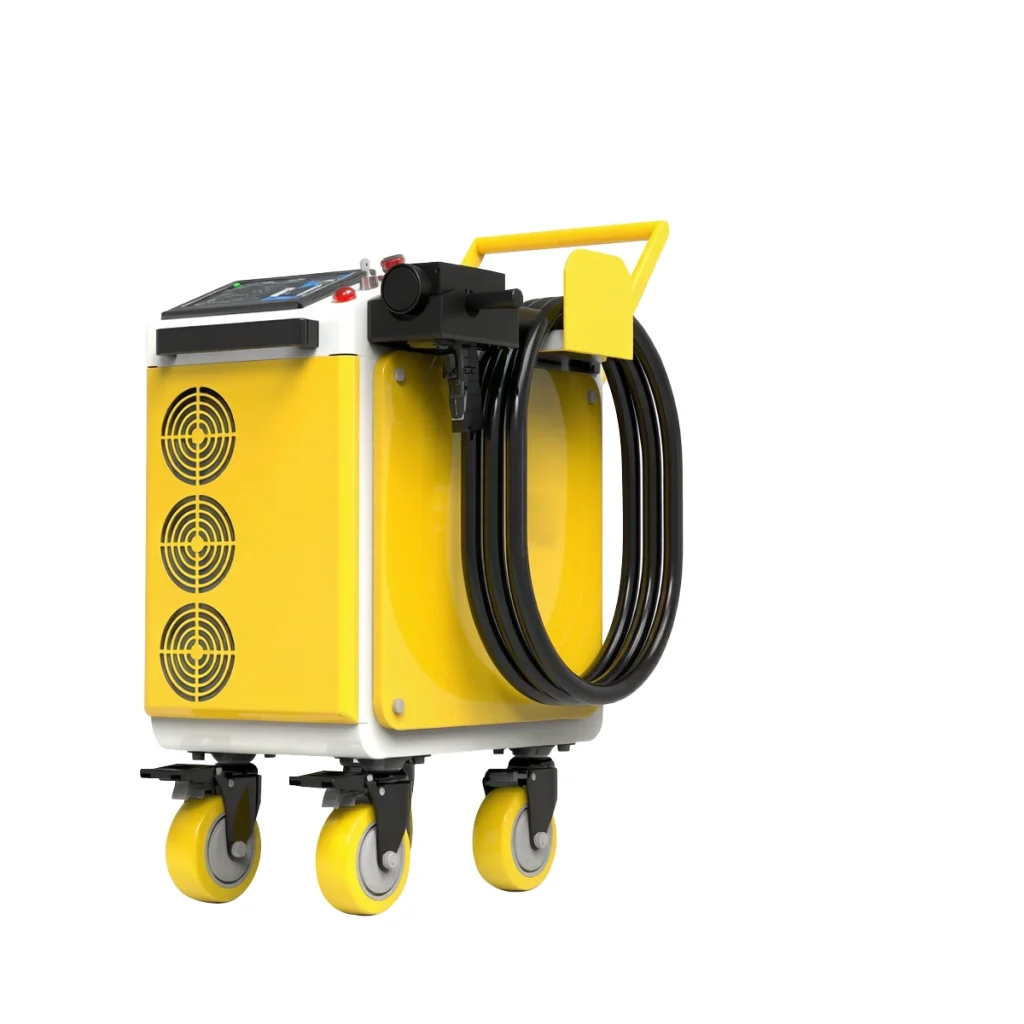

Supplied product render. Product view. Equipment shown may include options; confirm the selected version and equipment list in your quotation.

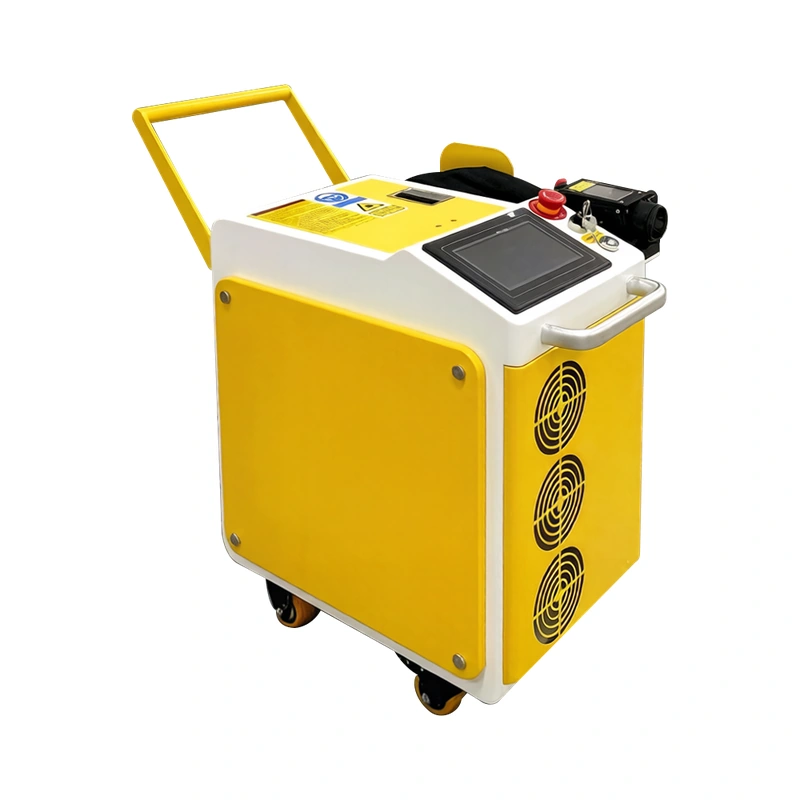

Product photograph. Control-side oblique view. Same supplied reference version; equipment and accessories follow the confirmed quotation.

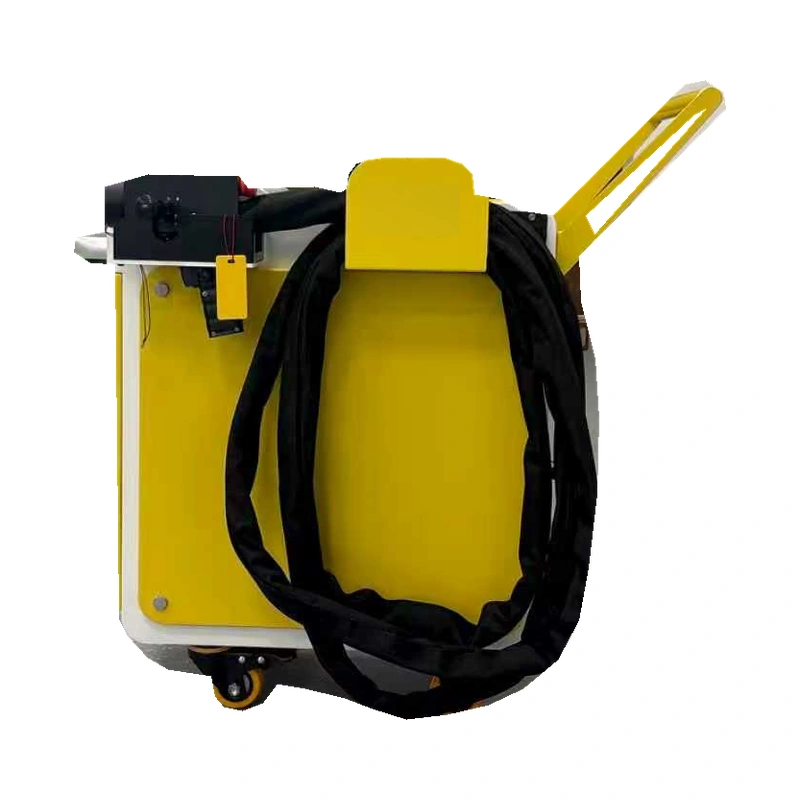

Product photograph. Fibre-coil side view. Same supplied reference version; equipment and accessories follow the confirmed quotation.
View product imagesPlan a cabinet setup for your cleaning task.
Review the yellow cabinet cleaning unit against the surface, work cycle and site requirements.
Review the machine and the workflow.
Cabinet layout
KFC-AP-D is the yellow cabinet pulsed cleaner shown here. Plan its position, cable routing and cleaning-head reach around the parts and surfaces you need to access.
Source and cooling review
Match the pulse source and cooling arrangement to the selected power and operating cycle.
Work-area preparation
Review head reach, part access, extraction, electrical supply and the required surface result.
Plan your KFC-AP-D configuration.
Use the following product identity and planning requirements when requesting a configuration.
| Operation | Information to share | Configuration to review |
|---|---|---|
| Surface | Substrate, coating or contamination and photographs | Laser source, head and scan settings |
| Acceptance | Required finish and allowable surface change | Sample test and inspection criteria |
| Site | Reach, work area, extraction and electrical supply | Fiber routing, cooling and operating setup |
Technical data & source options
| Model / series | KFC-AP-D |
|---|---|
| Equipment format | Cabinet-format pulsed cleaning |
| Configuration basis | Selected version and itemised quotation |
| Specification scope | Yellow cabinet, 300 W configuration |
| Average laser power | ≥300 W |
| Laser type | Pulsed fiber laser |
| Cooling method | Air cooling |
| Supply voltage | Single-phase AC 110–220 V ±10%, 50/60 Hz |
| Machine power consumption | ≤1300 W |
| Pulse width | 13–500 ns |
| Maximum single-pulse energy | 2 mJ |
| Power adjustment | 0–100% |
| Delivery fiber length | 5 m |
| Adjustable scan range | 0–100 mm, with 9 scanning patterns |
| Standard field-lens focal length | 210 mm |
| Optional field-lens focal lengths | 160, 254, 330 or 420 mm |
| Machine dimensions | Approximately 617 × 469 × 291 mm |
| Packed dimensions | Approximately 760 × 560 × 460 mm |
| Operating environment | 5–40 °C; relative humidity ≤80% |
Power, dimensions, capacity and performance must match the selected equipment version and the agreed quotation.
Equipment version and included items
Confirm the selected machine version, source, head, controls and supporting equipment in an itemised quotation.
Installation and acceptance
Agree the delivery layout, utilities, installation responsibilities, sample requirements and inspection criteria before scheduling the machine.
Before you choose.
What should I send for a KFC-AP-D quotation?
Substrate, coating or contamination and photographs. Also include your production requirements, destination and installation conditions.
Are all accessories shown included?
Images identify the supplied reference version. Confirm the machine, process head, supporting equipment and accessories in the itemised quotation.
Can I confirm the result with a sample?
Share a representative part or material and define measurable acceptance criteria. Review the proposed configuration and test plan before arranging the sample.
