3 kW Fiber Laser Cutting MachineHandheld welding · Water cooling
Water-Cooled Handheld Laser Welder

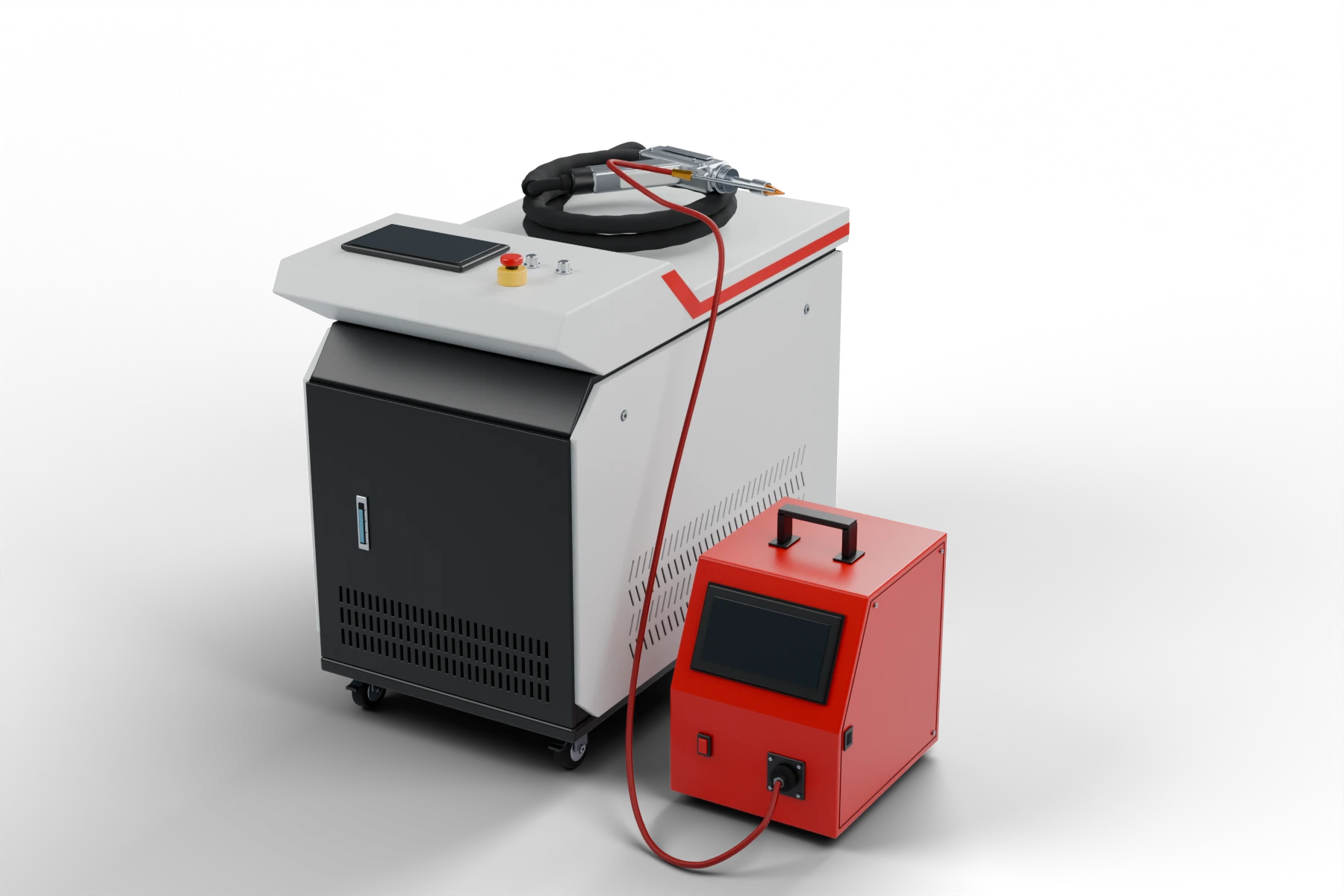

Product image · handheld welder and head with a separate wire feeder shown. Confirm feeder inclusion in the selected equipment list.

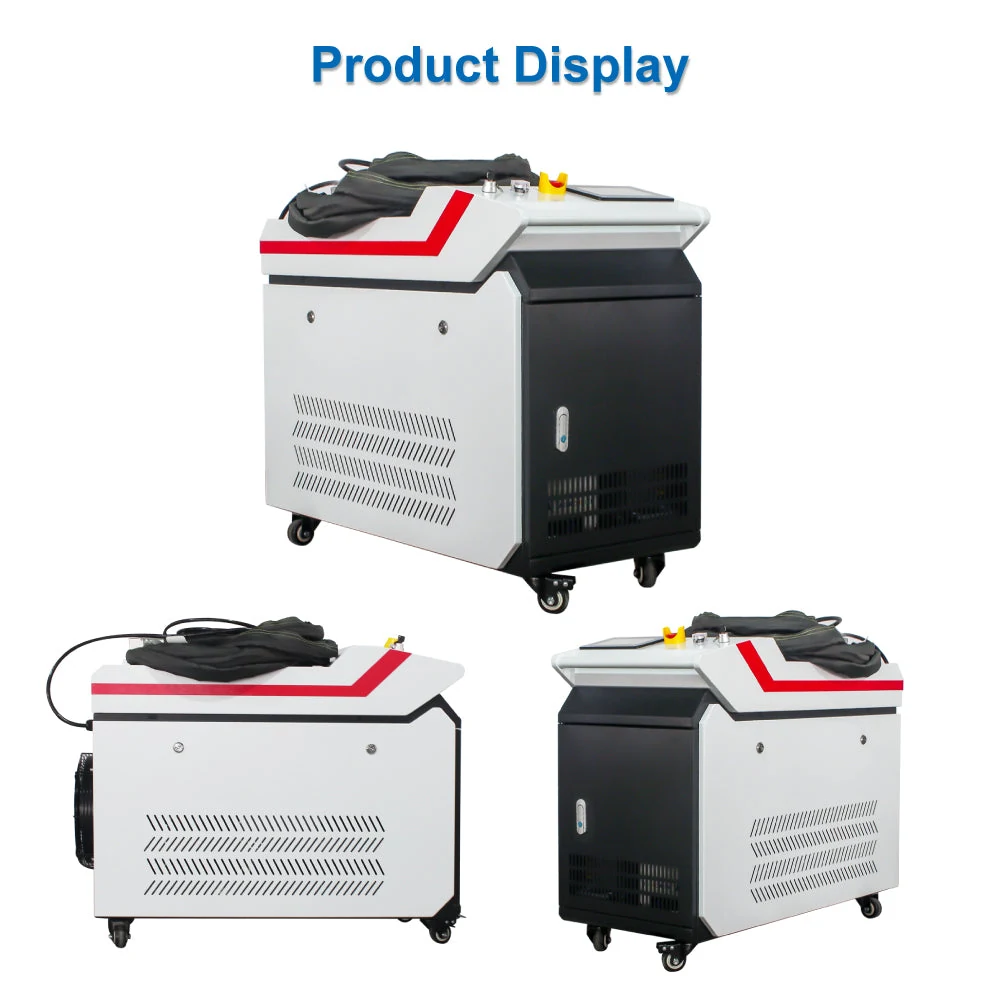

Product views · housing and connections follow the selected configuration.

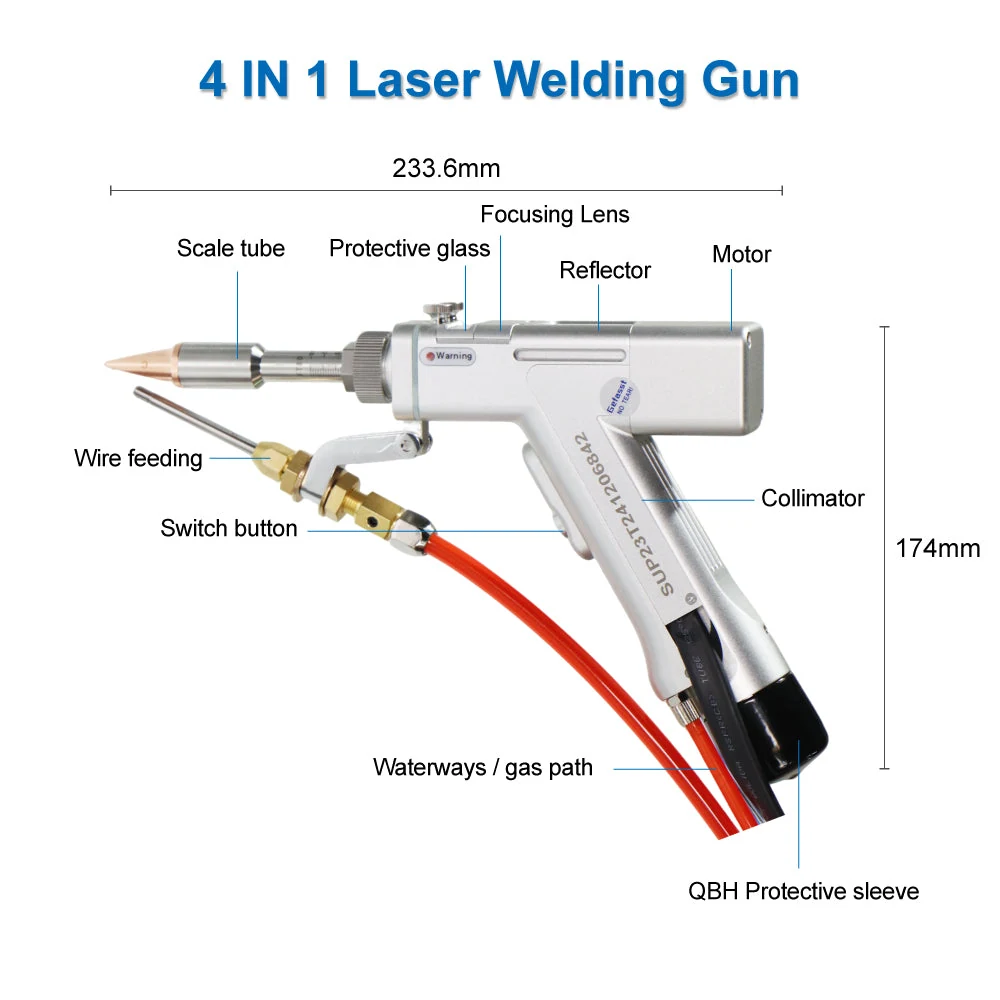

Head reference · select the process accessories with the machine.

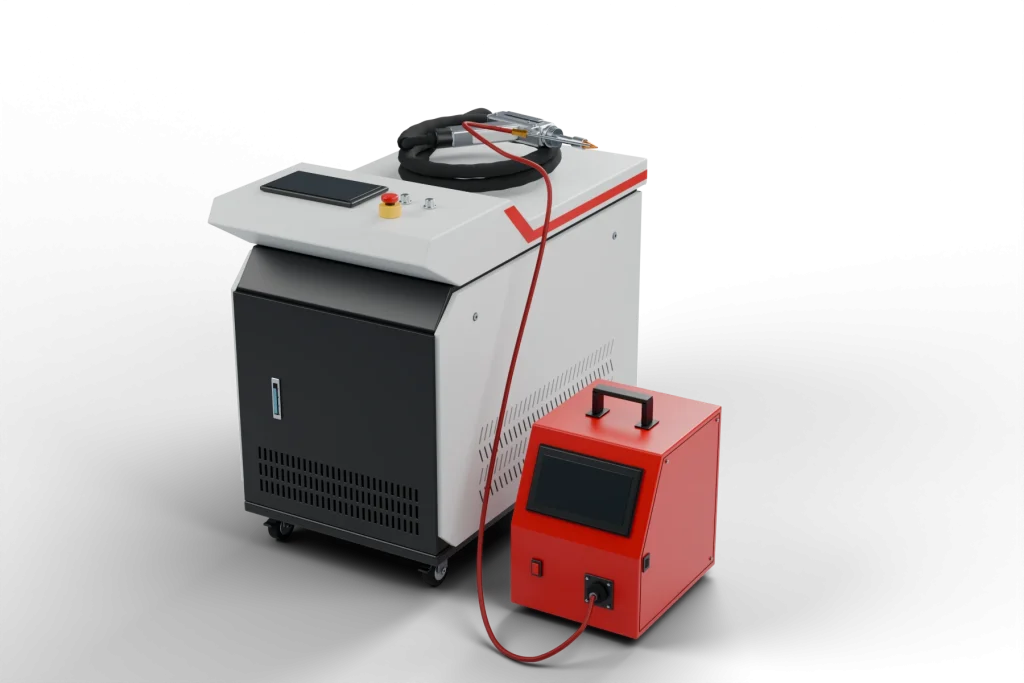

Blender exterior illustration. Refer to the product photographs and confirmed configuration for equipment details.
Bring laser welding to metal fabrications with a handheld head and water-cooled laser system. Choose the power, wire-feed options and process package around your joints.
1.2–3 kWAvailable laser power options
Series options at a glance
- Cooling
- Water cooling
- Delivery fiber (published reference)
- 8 m
- Power supply options
- AC 220 V ±10%, 50/60 Hz or 380 V, 50/60 Hz
Start with the joint, thickness and finish you need. Power and accessories are selected together.
Handheld welding configuration.
A handheld workflow for accessible seams, with the laser, cooling and wire feed specified as one equipment package.
A head for the work in hand
A handheld head lets the operator follow the joint. Review the part geometry, working position and required access when choosing the setup.
Wire feed by configuration
Choose the wire and feed arrangement around the base material and joint gap. Confirm the feeder and accessories included in the selected equipment package.
Water cooling as part of the system
The water-cooled cabinet supports the selected laser package. Plan the machine position, utility supply and working area before installation.
Power, process & configuration.
Published options for the water-cooled handheld range. Select one complete configuration for your project.
Find your configuration| Laser power options | 1,200 / 1,500 / 2,000 / 3,000 W |
|---|---|
| Cooling | Water cooling |
| Delivery fiber (published reference) | 8 m |
| Laser source options | RECI / BWT / MAX / Raycus |
| Power adjustment | 5–95% |
| Spot adjustment (series reference) | 0.2–5 mm |
| Power supply options | AC 220 V ±10%, 50/60 Hz or 380 V, 50/60 Hz |
| Electrical configuration | Matched to the selected power and destination |
The values describe the product range. Source, head, power supply and included accessories are confirmed together in the quotation.
What does the four-in-one option include?
The range offers welding, weld-seam cleaning, surface cleaning and cutting functions through a compatible head and accessory package. Specify which functions you need; suitability and included accessories depend on the selected configuration.
Choosing the power and welding process
Provide the material grade, thickness, joint geometry and required weld appearance. These are reviewed with the laser source, head, shielding-gas arrangement and wire feed. A sample test establishes the result for the actual joint.
Resources & support.
Prepare a clear joint and material brief before selecting the machine.
Before you choose.
Which power suits my parts?
Power alone does not define the weld. Material, thickness, fit-up, joint access and acceptance requirements are reviewed together. Send representative joints and drawings to discuss the appropriate option.
Is the wire feeder included?
The pictured setup shows a separate wire feeder. Its inclusion and specification depend on the selected package; confirm the feeder, wire requirements, head and accessories in your quotation.
Can I use the same machine for cleaning and cutting?
A compatible four-in-one configuration offers additional processing modes. Describe the material and result required for each process so the head, accessories and application limits can be reviewed.
Get in touch
Let’s define your welding setup.
Share the material, joint and finish you need, together with your daily workload and installation location.
Email our team[email protected]Have a drawing or reference photo? Send it to us by email.
After your enquiry
Our team reviews your requirements and follows up on the machine configuration, sample arrangements or support you need.
Quotation checklist
